Introduction to XXQ‑2505 Portable Casting X‑ray Flaw Detector
The XXQ-2505 portable casting X-ray flaw detector is professional non-destructive testing equipment tailored for industrial foundry enterprises. It is specially applied to internal flaw detection of steel castings, iron castings and alloy castings. Featuring stable X-ray output and lightweight portable design, the equipment is highly adaptable for on-site workshop inspection, field sampling and batch quality inspection of castings, serving as reliable quality control equipment for the casting industry.
This X-ray flaw detector is equipped with a high-stability X-ray generator that can emit continuous short-wavelength X-rays. When high-energy X-rays penetrate casting workpieces, structural differences in material thickness and internal density will lead to varying degrees of X-ray attenuation. Based on this physical principle, clear grayscale images will be presented on flat-panel detectors or industrial films, allowing inspectors to accurately identify internal defects through the brightness and darkness contrast of imaging results. In actual detection, dark areas on the image indicate strong X-ray penetration, corresponding to thin-walled positions, internal pores or shrinkage cavities of castings.
In contrast, bright areas represent high-density structures or non-metallic inclusions inside workpieces. With intuitive grayscale imaging, the equipment can effectively detect various common casting defects including micro cracks, slag inclusions and shrinkage porosity, realizing efficient and visual non-destructive testing. Compared with traditional low-power portable X-ray detectors on the market, the XXQ-2505 model has achieved comprehensive performance upgrades. Conventional equipment usually suffers from insufficient penetration capacity and unstable ray output, which easily causes blurred imaging, fuzzy defect outlines and even missed detection. The XXQ-2505 features stable beam energy output and stronger penetration performance, fully meeting the strict detection standards for medium and thick castings that ordinary equipment cannot handle. Its stable and continuous X-ray output effectively avoids detection errors, greatly improving the accuracy and long-term stability of on-site non-destructive testing work.
To guarantee long-term and consistent detection accuracy in complex working environments, the XXQ-2505 portable X-ray flaw detector supports professional X-ray transmittance and efficiency calibration. The factory adopts mature multi-angle grating measurement technology to thoroughly eliminate equipment system errors. The whole calibration process is simple and efficient without complicated professional operation.
After precise factory calibration, the equipment can maintain uniform and stable X-ray beam output in various complex inspection scenarios. All detection results fully comply with unified industrial NDT standards, ensuring long-term stable and reliable detection data for industrial production and quality inspection.

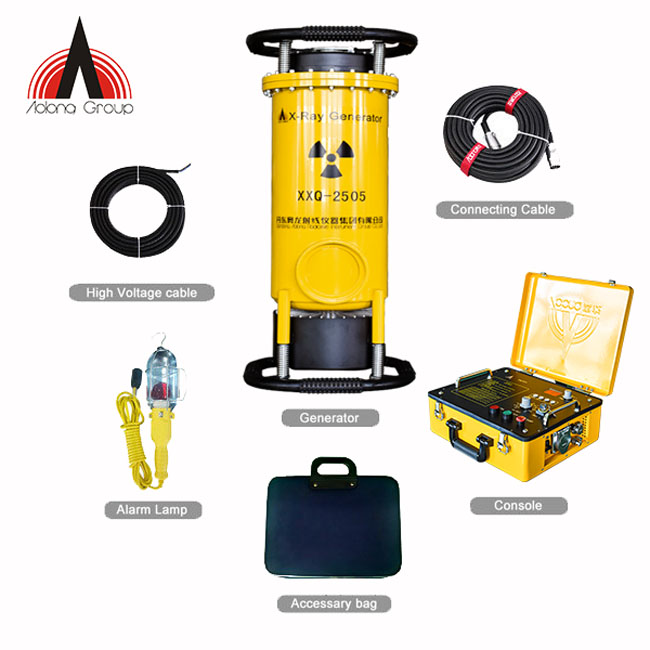

The standard complete configuration of the XXQ-2505 flaw detector includes X-ray generator, control console, high-voltage cable, connecting cable, alarm lamp and special accessory bag. The integrated and portable equipment combination supports rapid on-site deployment and flexible mobile operation. It can adapt to diverse industrial casting inspection scenarios, providing efficient and convenient NDT solutions for foundry enterprises.
